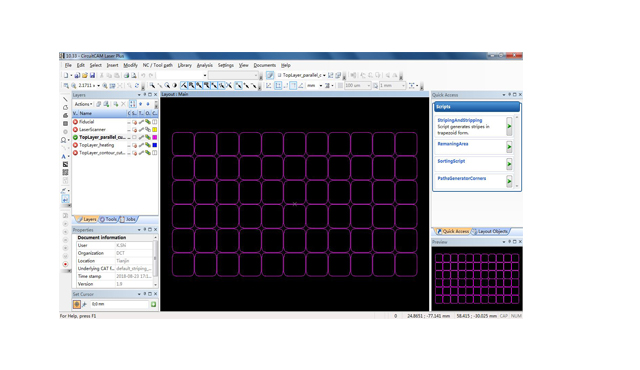

CircuitCAM 7 Laser
Complete functionality for all milling and drilling operations as well as Laser machining for cutting, structuring and exposure.
Freely configurable geometry engine for all kinds of tool-path generation, easily customizable for your specific needs, either by yourself, our sales representatives or directly by DCT
· Laser exposure for Lasers with variable aperture size
· Laser scanner support,by splitting the layout area in smaller scanner areas
by special acceleration and de-acceleration paths for equal energy
distribution
· Methods to avoid double Laser structuring at the same places to avoid
burn ins
· Pannel and Step & Repeat
· Customizable template files
· more import and export formats
· Enhanced interactive graphics editing capabilities
Features
Perfect function
Easy to use
Core of the value
High compatibility
Worry-free service
Product parameters
Category | Feature | Basic | Laser | Pro | Laser Plus |
CAM file | |||||
Open | ✓ | ✓ | ✓ | ✓ | |
Save | ✓ | ✓ | ✓ | ✓ | |
Import | |||||
Gerber | ✓ | ✓ | ✓ | ✓ | |
GerberX (See Below on Cutouts) | ✓ | ✓ | ✓ | ✓ | |
Excellon/Sieb & Meyer | ✓ | ✓ | ✓ | ✓ | |
LMD | ✓ | ✓ | ✓ | ✓ | |
HP-GL | ✓ | ✓ | ✓ | ✓ | |
DXF | ✓ | ✓ | ✓ | ✓ | |
Barco DPF | ✓ | ✓ | ✓ | ✓ | |
ODB++ | ✓ | ✓ | ✓ | ✓ | |
Export | |||||
G-Code | ✓ | ✓ | ✓ | ✓ | |
Gerber | ✓ | ✓ | ✓ | ✓ | |
GerberX | ✓ | ✓ | ✓ | ✓ | |
Excellon | ✓ | ✓ | ✓ | ✓ | |
LMD | ✓ | ✓ | ✓ | ✓ | |
HP-GL | ✓ | ✓ | ✓ | ✓ | |
HP-GL with pen width | ✓ | ✓ | ✓ | ✓ | |
DXF | ✓ | ✓ | ✓ | ✓ | |
Barco DPF | ✓ | ✓ | ✓ | ✓ | |
PostScript | ✓ | ✓ | ✓ | ✓ | |
List of Sub-Layout Instances | ✓ | ✓ | |||
Special | |||||
Datamatrix | ✓ | ✓ | ✓ | ✓ | |
PCB-DRC | ✓ | ✓ | ✓ | ✓ | |
Stencil DRC | ✓ | ✓ | |||
Editing | |||||
Editing of Primitives and Flashes | ✓ | ✓ | ✓ | ✓ | |
Multi level Undo/Redo | ✓ | ✓ | ✓ | ✓ | |
CSG (set operations) | ✓ | ✓ | ✓ | ||
Polygon with Cutouts (also for Import) | ✓ | ✓ | ✓ | ||
Convert to Flash & Comparison | ✓ | ✓ | ✓ | ||
Draw to Flash | ✓ | ✓ | ✓ | ||
Denest Flash | ✓ | ✓ | ✓ | ||
Create Outline | ✓ | ✓ | ✓ | ||
Step & Repeat | ✓ | ✓ | ✓ | ||
Create Bounding Shape | ✓ | ✓ | ✓ | ||
Shape Manipulations | ✓ | ✓ | ✓ | ||
Sub-Layout instances | ✓ | ✓ | |||
Geometry Manipulations Center (GMC) | ✓ | ✓ | |||
Tool Path | |||||
Insulation Milling | ✓ | ✓ | ✓ | ✓ | |
Contour Routing | ✓ | ✓ | ✓ | ✓ | |
Base Material & Fixture | ✓ | ✓ | ✓ | ✓ | |
Tool compensation | ✓ | ✓ | ✓ | ✓ | |
Swap & Sequence | ✓ | ✓ | ✓ | ✓ | |
Sorting / path optimization | ✓ | ✓ | ✓ | ✓ | |
NC Mode | ✓ | ✓ | ✓ | ✓ | |
Configurable Toolpath Engine (Universal / Laser / Milling / Drilling) | ✓ | ✓ | ✓ | ||
Laser Fill | ✓ | ✓ | ✓ | ||
Laser Insulate | ✓ | ✓ | ✓ | ||
Scanner Fields | ✓ | ✓ | ✓ | ||
SMT Stencil calculation | ✓ | ✓ | |||
SMT Stencil Frame Generator | ✓ | ✓ | |||
Striping & Stripping | ✓ | ||||
Library | |||||
Create Package | ✓ | ✓ | |||
Create Footprint | ✓ | ✓ | |||
Package Recognition | ✓ | ✓ | |||
GMC Exchange | ✓ | ✓ | |||
Apply Footprints | ✓ | ✓ | |||
Import Library | ✓ | ✓ |
