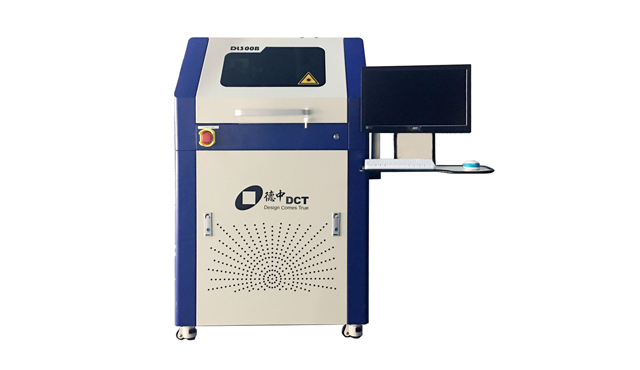

DL series, direct laser PCB prototyping equipment

Making conductive pattern as simple as printing, suitable for small batch production of variety of Circuit Board at home, especially fit for making high accuracy geometric pattern of RF and microwave. High quality and high speed of processing, compacted, reliable and easy to use besides, low cost of ownership and daily operation, DL series sets up a new standard of cost performance ratio for Circuit Lasers.


The equipment adopts high precision servo motor with C5 level ball screw. Simple structure, safe and stable. High performance digital scanning mirror combined with vacuum adsorption platform ensure high processing efficiency, precise depth control. The intelligent CCD system realize automatic positioning. One-key calibration, convenient and fast. Special dust collection system ensured clean and contamination-free processing.


Features

Direct laser copper stripping

Easy to operate, free from the traditional tedious process, production on demand;

Precision motion system

construction based on natural granite, high precision motion system, stable and reliable;

Top - class optical devices

Extra-long life and efficient laser source;

Using data-driven devices

distortion free, no plate-making diagram etching, shortest process;

Increase equipment level

Multifunctional and practical equipment break through the traditional limitations

Product parameters

Technical data

DL300B

DL300B-Adv

DL300G-Adv

Laser wavelength

1,064 nm

1,064 nm

532 nm

Repetitive accuracy

≤ ± 2 μm

≤ ± 2 μm≤ ± 2 μm

Positioning accuracy

≤ ± 0.5 μm

≤ ± 0.5 μm≤ ± 0.5 μm

Average laser power

30 W

20 W

20 W

X/Y Resolution

≤ 0.5 μm

≤ 0.5 μm≤ 0.5 μm

Scan field resolution

1 μm

1 μm1 μm

Working area

300x300mm

300x300mm300x300mm

Plattform

Granite platform, bridge structure

Dimension (W x H x D)

900mm x 1,450mm x 850mm

Weight

270kg

Data acceptance

Gerber, HPGL, Sieb & Meier, Excellon,   ODB++, DXF



Configuration and options

DL300B

DL300B-Adv

DL300G-Adv

Data processing software

CircuitCAM7

Machine operating software

DreamCreaTor3

Camera automatic positioning

included

Exhaust unit

included

Vacuum table

included



Operating ambient

DL300B

DL300B-Adv

DL300G-Adv

Power requirement

220VAC/50Hz,1.7 kW

220VAC/50Hz,1.8 kW

Ambient temperature

26℃±4℃
